Passave Closed Loop Extractor Kits - Scalable.

Extractors:

Closed Loop Extractors

  Like / Share on facebook



Healthier Alternative



Hash Oil Wax Vaporizers

Passive "or active" Closed Loop Reclamation Extraction Kits

Closed Loop Extractors:

Now Stocking Closed Loop Reclamation Extraction Systems from Value Vacs.

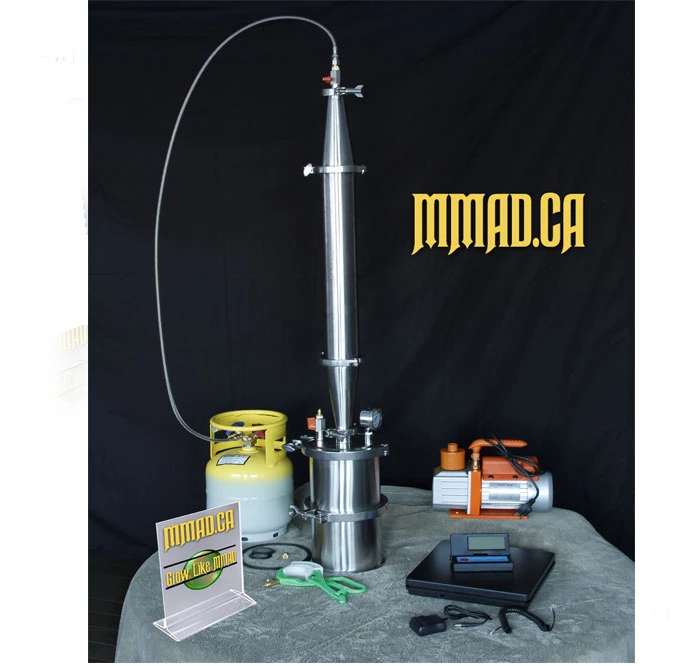

The one shown here, come with 1 yr. Limited warranty, a 150 Micron Mesh Blast tube Filter Nitrile Buna-N Gaskets are designed for Oil Processing Temp range -30-200F full set of extra gaskets including the 50 micron mesh gasket for the blast tube is included. (Works extremely well with Puretane), medical grade N-Butane that is 99.9998% Pure. "in stock".

Key Features: "Description specific to the closed loop extraction kit shown in photo"

  • 304 Stainless Steel Blast Tube 60-90g *(Ability to Scale to 1lb)
  • 304 Stainless Steel Heavy Duty Ball Valves
  • System Rated to 100PSI for blasting
  • Multiple port connections for ¼" ACME
  • 304 Stainless Steel Base Container 6" diameter by 6" tall
  • Vacuum clamps at all interfaces make for a high pressure, easy clean unit.
  • 3 CFM Single Stage Vacuum Pump(50 micron)
  • 400 PSI Max reclaim/supply tank (13 lb fluid max capacity)
  • Can Punch Connector to charge supply/reclaim tank
  • 1 SS304 Braided PTFE Hose to connect all the parts.

Specifications: Dimensions (Inches): 25" x 7" Diameter overall size
Weight: 21 lbs.
Operating Temperature Range: 0C (32F) to 72C (160F)
Ultimate Vacuum: as low as 10 Microns
Base unit Maximum Capacity: 155 cubic inches, (2.553 Liters)
Construction: All components made of 304 Stainless Steel.
Intake Fittings: ¼" ACME Vacuum Fittings
Max Vacuum -29.9inHg
High Polish Interior base

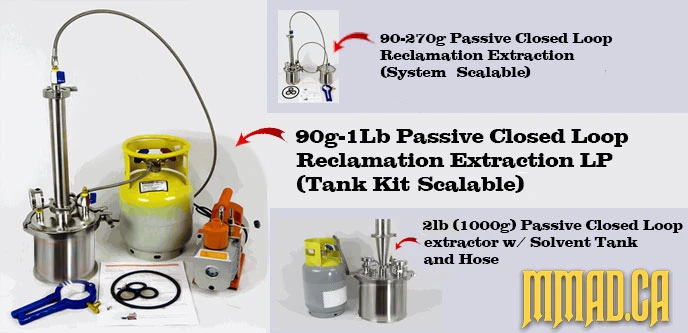

Closed Loop Extractor Kits

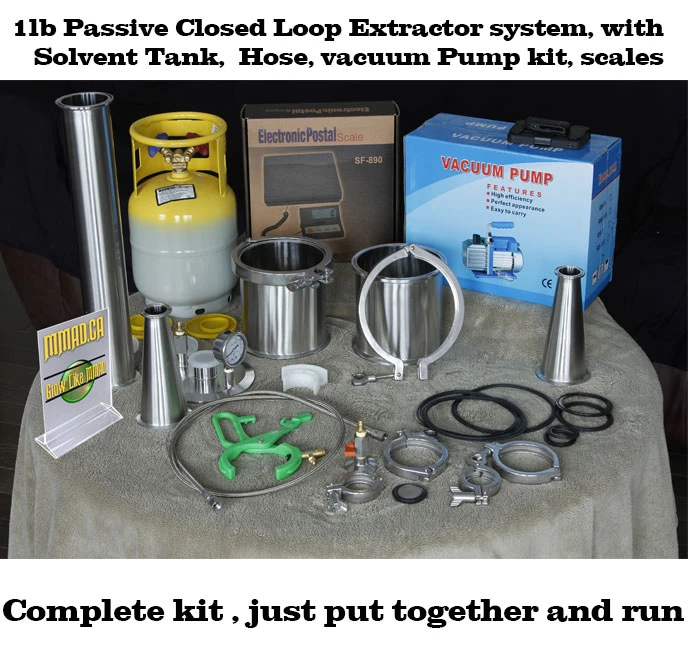

1lb Passive Closed Loop Extractor system, with Solvent Tank,  Hose, vacuum Pump kit, scales

Official Best Value Vacs Retailer

extraction-kit

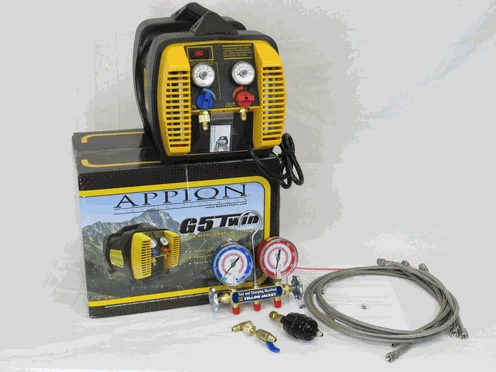

Active Closed Loop Upgrade Kit (Turn a Passive system to Active)
Active Closed Loop Upgrade Kit

vaporizers

Puretain N Butane
